UDS-E LED Ultrasonic Scaler - Ultrasonic Cavitron Unit
Couldn't load pickup availability

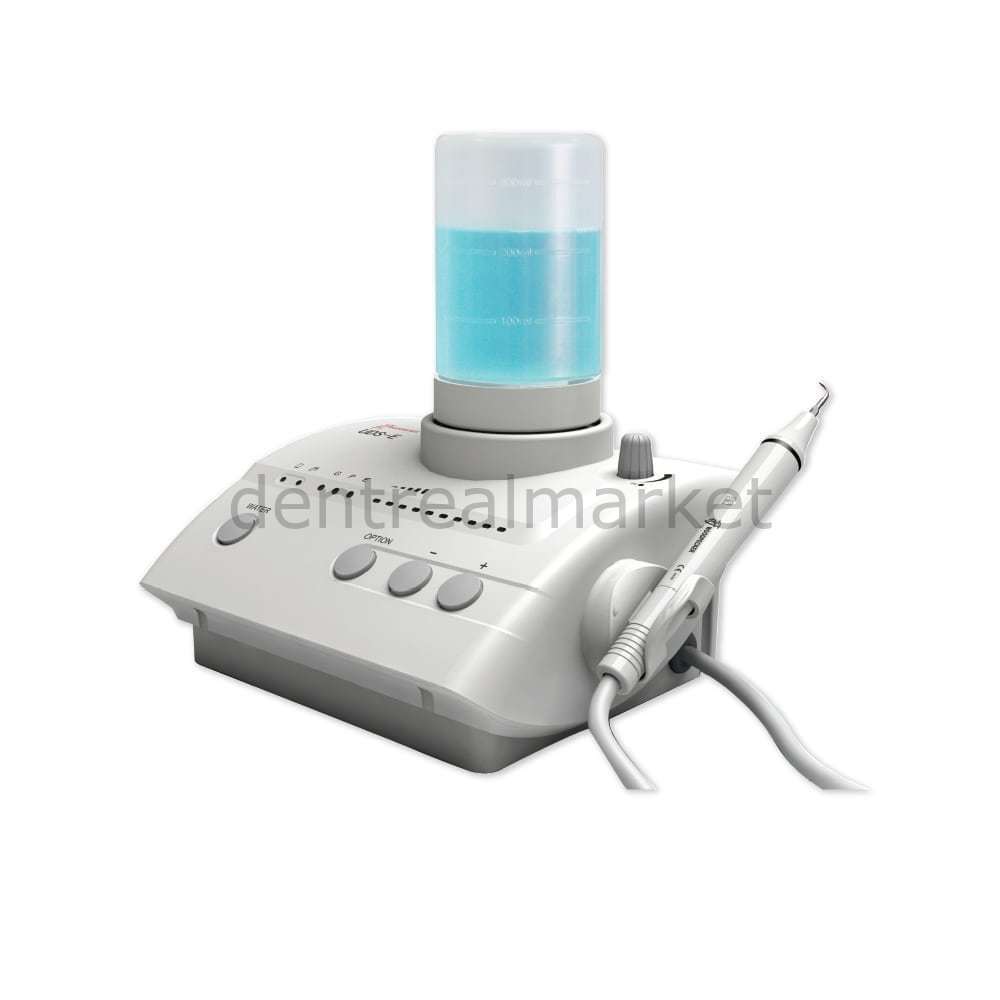

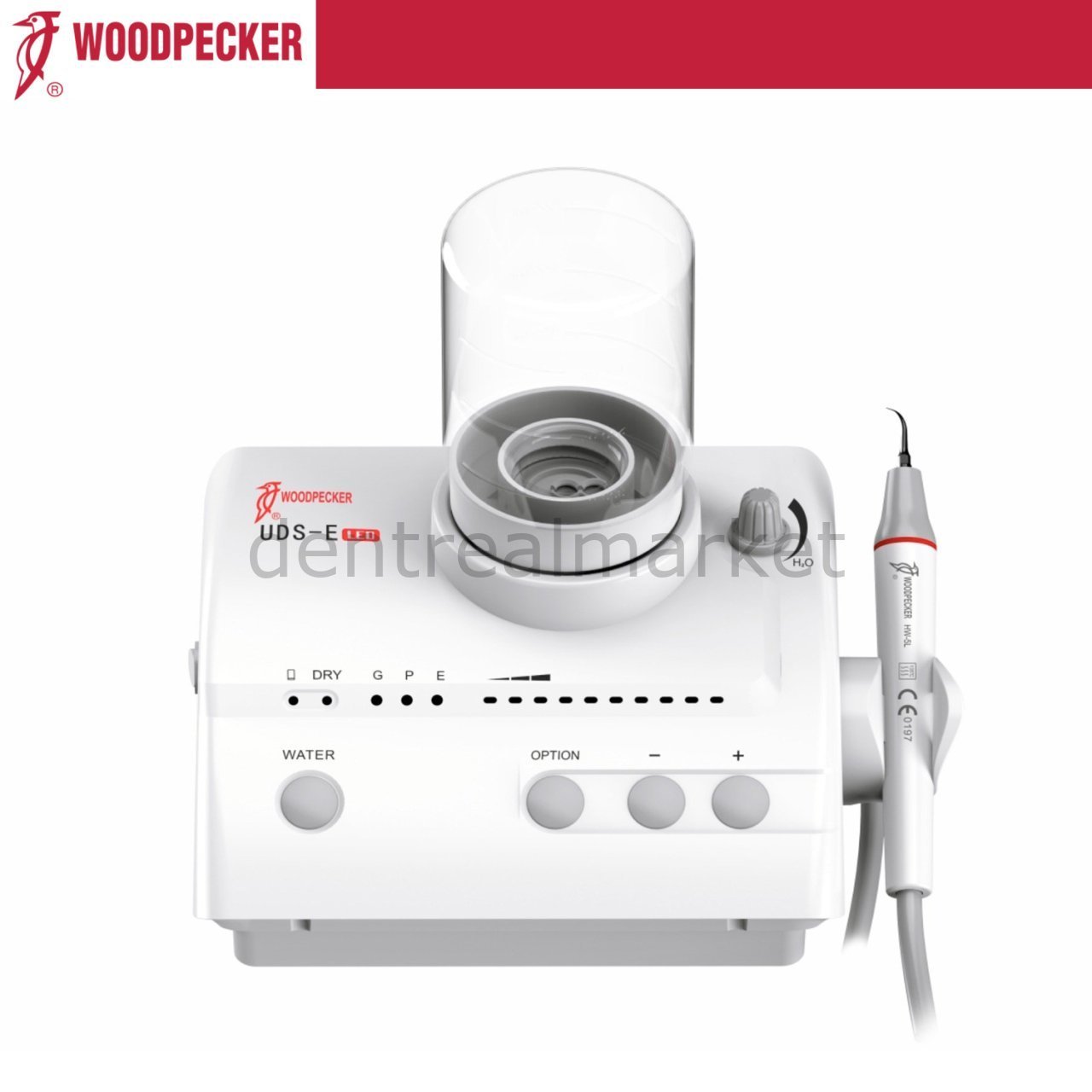

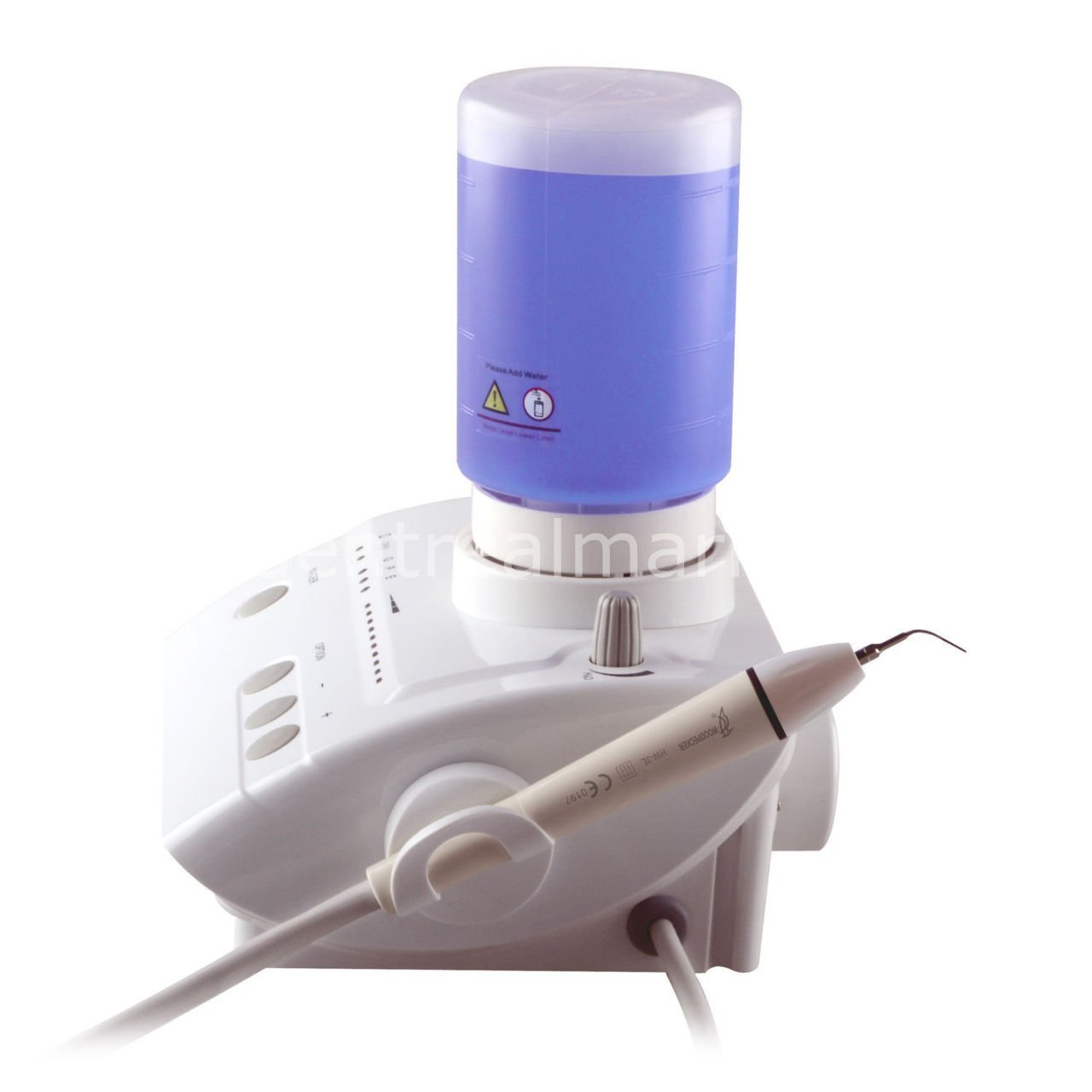

Woodpecker -UDS-E LED Ultrasonic Scaler - Ultrasonic Piezo Scaling Unit
The UDS-E LED is a four-function (scaling, perio, endo and auto-water supply) ultrasonic piezo scaler with a detachable handpiece incorporating an LED light.
The unit features automatic frequency tracking which ensures that it is always operating on the most efficient frequency for optimum performance. It also features a built-in 350ml capacity water container, however, there is also an adaptor for an external water source and a spare bottle.
Features
Complete with 7 tips, torque wrench, tip holder and spare bottle
LED Handpiece for better visibility
Auto-water supply function
Clinical fluids, such as hydrogen peroxide, chlorhexidine and sodium hypochlorite, etc., can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically
PC controlled for easy operation and more efficient scaling
Automatic frequency testing
EMS compatible handpiece
Scaling Frequency: Average 28000 - 29000Hz
Perio Frequency: Average 28000 - 29000Hz
Endo Frequency: Average 27000Hz
Specification
Power input 220-240V ~ 50Hz/60Hz
Main unit input 24V ~ 50Hz/60Hz 1.3A
Output power 3W~ 20W
Frequency 28kHz - 3kHz
Water pressure 0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
Main unit weight 1.35kg
Dims 234mm x 193mm x 109mm
